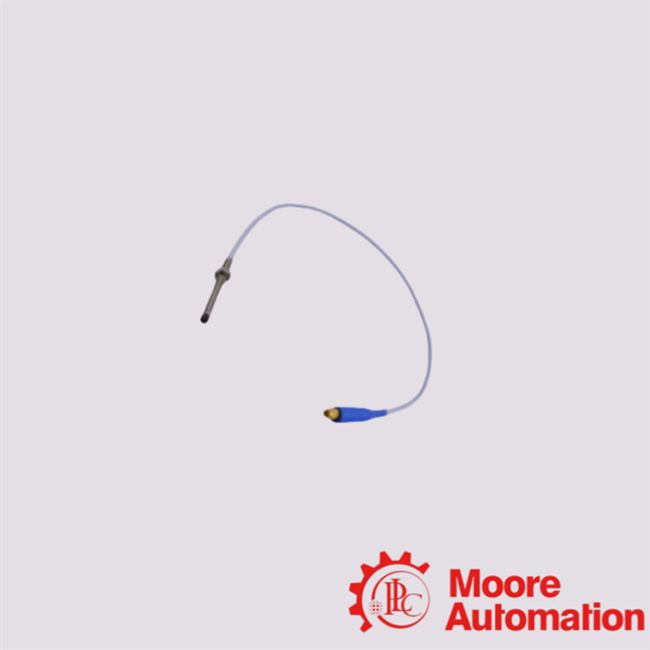

330901-00-19-10-02-00 Bently Nevada Proximity Probe
Description
The Bently Nevada 330901-00-19-10-02-00 is a model of the 3300 NSv Proximity Probe, a component of the 3300 XL NSv Proximity Transducer System.
This system is designed for precise, non-contact measurement of shaft position and vibration in industrial machinery, particularly in
applications where space constraints or mounting orientation make standard probes unsuitable.
330901-00-19-10-02-00 Details
|
FAQ
|
|
Q1: What is the purpose of the reverse mount design?
A1: The reverse mount configuration allows the probe to be installed in areas with limited access or
where standard mounting orientations are not possible, ensuring accurate measurement in challenging environments.
|
|
Q2: How should I select the appropriate cable length?
A2: The total electrical length of the probe, extension cable, and Proximitor sensor must be consistent to ensure accurate measurements.
It's essential to match the electrical length of the probe with the corresponding extension cable and Proximitor sensor.
|
|
Q3: What materials are used in the construction of the probe?
A3: The probe features a Polyphenylene sulfide (PPS) tip, AISI 304 stainless steel casing, and uses a
Viton O-ring for sealing. The cable is a 75 Ω coaxial type with FEP insulation.
|
|
Q4: What is the operating temperature range of the probe?
A4: The probe is designed to operate effectively in a wide range of temperatures, typically from
-40°C to +85°C, making it suitable for various industrial environments.
|
