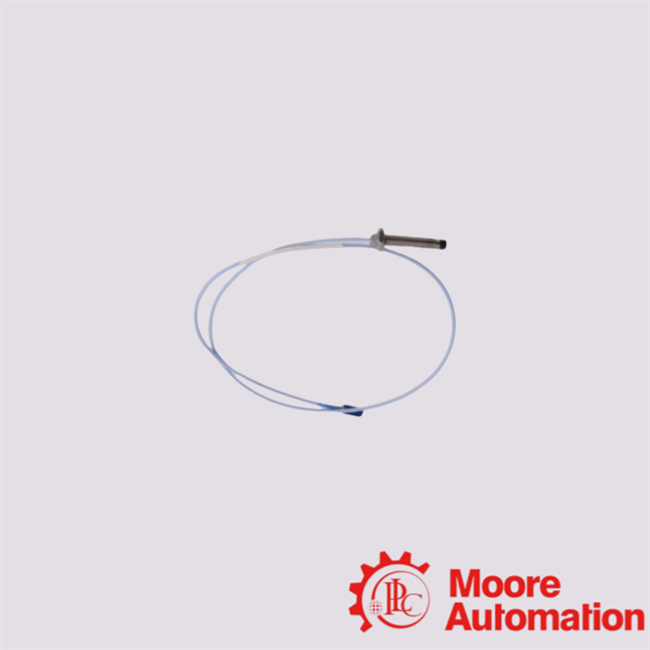

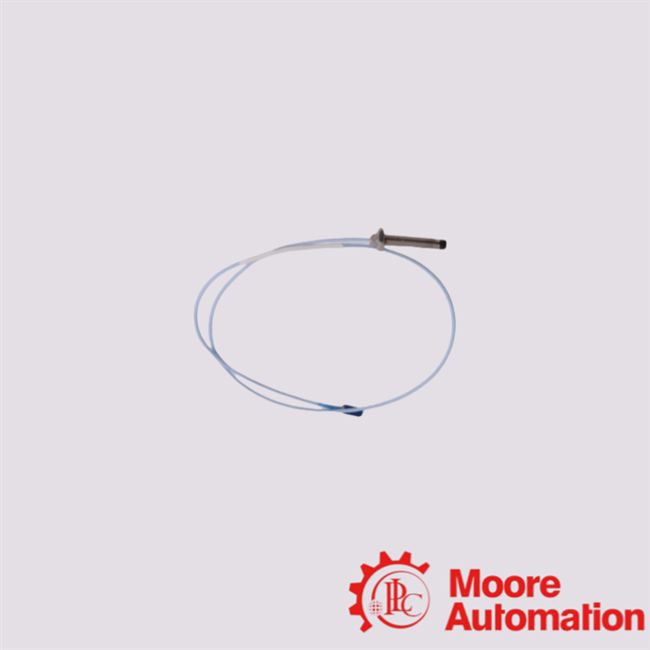

330103-00-15-50-02-00 Bently Nevada Proximity Probes

Name: 330103-00-15-50-02-00 Bently Nevada Proximity Probes
Brand: MOORE AUTOMATION LIMITED
SKU: 330103-00-15-50-02-00
Availability: InStock

Productdetails:

Plaats van herkomst:	VS
Merknaam:	Bently Nevada
Certificering:	CO.CQ
Modelnummer:	330103-00-15-50-02-00

Detailinformatie

Plaats van herkomst:

Merknaam:

Bently Nevada

Certificering:

CO.CQ

Modelnummer:

330103-00-15-50-02-00

Beschrijving:

Dichtbijzijnssondes

Artikelnummer:

330103-00-15-50-02-00

Merken:

Bently Nevada

Vervaardigingsjaar:

2020

Toepassing:

Kerncentrale

Levertyd:

Op voorraad

Gewicht:

4 pond.

Markeren:

High Light

Markeren:

Bently Nevada proximity probe sensor

Bently Nevada 3500 system probe

industrial proximity probe with warranty

Handelsinformatie

Min. bestelaantal:

Prijs:

inquiry

Verpakking Details:

nieuw en origineel met fabrieksverzegeling

Levertijd:

Vandaag

Betalingscondities:

t/t

Levering vermogen:

10 stuks per dag

Productbeschrijving

330103-00-15-50-02-00 Bently Nevada Proximity Probes

`Description`

The 330103-00-15-50-02-00 is a model from Bently Nevada’s 3300 XL 8 mm eddy-current proximity transducer system,

designed for high‑precision vibration and shaft position monitoring in rotating machinery, especially fluid-film bearing applications and keyphasor/speed reference tasks.

330103-00-15-50-02-00 Details

FAQ

Q1: What is the primary application of this probe ?
A1: Monitoring vibration and shaft position on fluid-film bearing machines, and providing phase‑reference and

speed signals via Keyphasor outputs – typical use in rotating machinery health monitoring systems.

Q2: What is the probe’s measurement range and accuracy?
A2: The standard operating (“linear”) range is from approximately 0.25 mm (10 mils) to about 2.3 mm (90 mils),

with full-scale output from −1V to −17V DC. Recommended gap setting is around 1.27 mm (50 mils) for radial vibration applications.

Q3: Can this model be used in high-temperature environments?
A3: While this specific model isn't the Extended Temperature Range (ETR) variant, Bently Nevada’s ETR versions support temperatures

up to approximately +218 °C for the probe and +260 °C for the cable. Standard versions typically handle up to +177 °C for the cable

and +177 °C for the probe tip. If your application needs that level of heat resistance, consider ordering the ETR option.

Q4: Is calibration or special matching required?
A4: No. All 3300 XL 8 mm system components are electrically and mechanically interchangeable,

so you don't need to bench‑calibrate or specially match probe, cable, and sensor pairs

—they’re plug‑and‑play compatible within the product family.
